Carbon Dioxide(CO©ü), Carbonate(CO©ý-©÷)

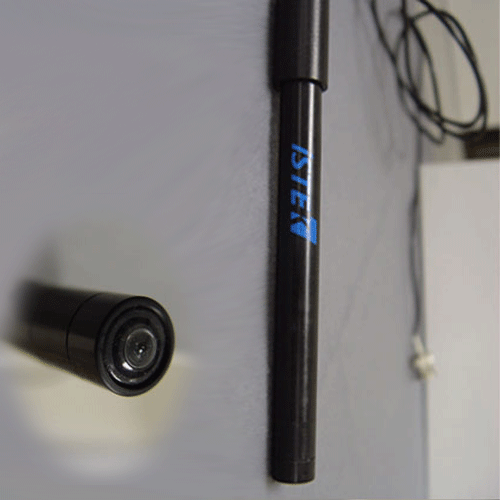

¼³¸í Carbon Dioxide Gas Sensing Electrode, Combination, Epoxy Body







​Model :


Slope :

​# CO21501


55 + / - 3 mV/decade

Reproducibility :

+ / - 2%

Interferences :

Volatile weak acids

Complexation :

Heavy metals

Temperature Range :

0 to 50¡Æ C (if calibrated at that temperature)

Pressure Range :

0 to 10 psi

ResponseTime :

95% response in 30 seconds

Storage :

Long term, store dry Short term, store in carbon

dioxide standard with ISA added

Concentration Range :

10-4 to 10-2M  4.4 ppm to 440 ppm

pH Range :

4.8 to 5.2 pH

Resistance :

1000 to 1500 megaohms

Care, Maintenance, & Cleaning :

Treat with dilute carbon dioxide standard with pH

adjusted to 4.8 - 5.2 Replace membrane as needed

Temperature Compensation :

No

Isopotential Point :

Unknown

On-Line Capability :

Yes, pH control required

Applications :

Soft Drinks, Wine Fermentation







 ISE Electrode

 Calibration Standard solution

 Filling solution

 125ml

 Standard solution 0.1 M

 475ml

 Standard solution 10 ppm

 475ml

 Standard solution 100 ppm

 475ml

 Standard solution 1,000 ppm

 475ml

 Standard solution 10,000 ppm

 475ml

 ISA (Ionic Strength Adjuster) solution

 ISA solution

 475ml

 ±âŸ

 Storage solution

 125ml

 Membrane kit

 Ä«Æ®¸®Áö-3°³, O-ring-3°³
