ISPP2_External Printer
Price Inquiry
Printer for iSTEK Instruments
Used for printing measurement data and test results

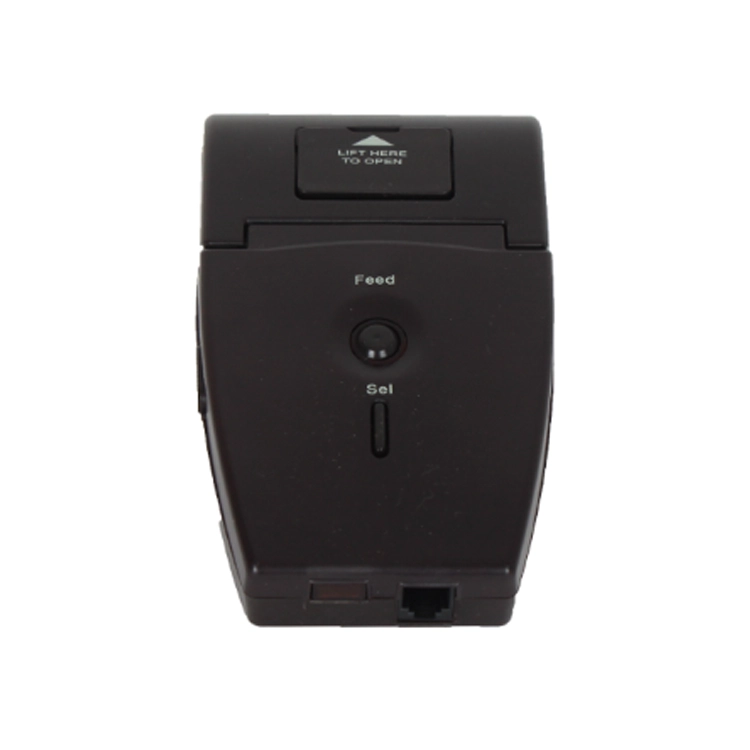

🔷 External Portable Printer
Specifications
- Printing Method: Direct Thermal Printing
- Print Capacity: 32 columns, 384 dots/line
- Font Size: 0.06 × 0.12 in. (1.5 × 3.0 mm)
- Paper Width: 2.25 in. (57.5 mm)
- Interface: Infrared (IR), RS-232
- Communication Speed: 300–115,200 bps
- Operating Temperature: 0°C to 40°C
- Power Supply: 4 × AA Alkaline Batteries (replaceable)
- Dimensions: 3.2(W) × 5.6(L) × 1.6(H) in. (81 × 142 × 41 mm)
- Weight (with batteries): 0.8 lb (0.4 kg)
🔷 Package Contents
- Portable Printer
- RS-232 Connection Cable (connector type selectable)
- 2 Rolls of Thermal Paper
🔷 Available in Two Connector Types (RS-232 Cable)
- Type A : pH-20N / DO-30N/ EC-40N / K9000-M
- Type B : pH-200L / DO-300L / EC-400L / P25
🔷 Applications
- Used for printing measurement data directly from compatible iSTEK instruments.
- Ideal for on-site testing, documentation, and record keeping.
