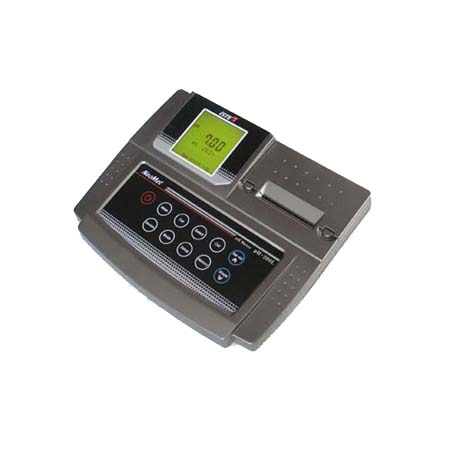

pH-220L

* pH/mV/ORP/Temp
* Backlight Custom LCD
* Bi-directional RS232C





* Wide & clear backlit custom LCD display

* Fast, accurate and easy-to-use, RS 232C communication

* Simultaneous display of pH(mV), temp and current time

* Auto(Manual) calibration with choice of buffer(3points)

* Automatic compensation for Temperature

* Available measure by using the latest calibration data

* Self-diagnostics, Auto-hold, Data-log up to 100 Points

* Certificated CE mark.



 pH





  Range

-2.00 to 19.99

  Resolution

0.1 / 0.01 / 0.001

  Relative Accuracy

 ¡¾0.02

  Auto-Buffer-Recognition

 4.00, 7.00, 10.00

Temperature

  Range

 -10 to 110¡É

  Resolution

 0.1¡É

  Relative Accuracy

 ¡¾0.4¡É

  Millivolts

  Range

¡¾1999.9mV

  Resolution

 0.1mV

  Relative Accuracy

 ¡¾0.1mV

  Temperature Compensation

 Auto

  Calibration

 Auto (3 Points) / Manual (3 Points)

  Datalog

100 Point

  Print Capability

Yes

  Display

Custom LCD

  Inputs

BNC, ATC, Power, RS232C

  Outputs

Recorder, RS232C (Computer / Printer)

  Power

AC/DC Power Adaptor

  Certification

 CE mark

  Dimension

 200(L) x 260(W) x 90(H), Weight 0.95kg



(1) Standard
   - Combination pH Electrode(#5733526)
   - ATC Probe
   - Buffer Solution (pH 4.00, 7.00, 10.00) 90ml
   - AC/DC Power Adapter
   - Instruction Manual


(2) Option
   - Electrode Storage Solution
   - Buffer Solution (pH 4.00, 7.00, 10.00)475ml
   - RS232C Interface Cable
   - Electrode Filling Solution
   - Exterior Thermal Printer
   - Luxury Third-Arm Stand
