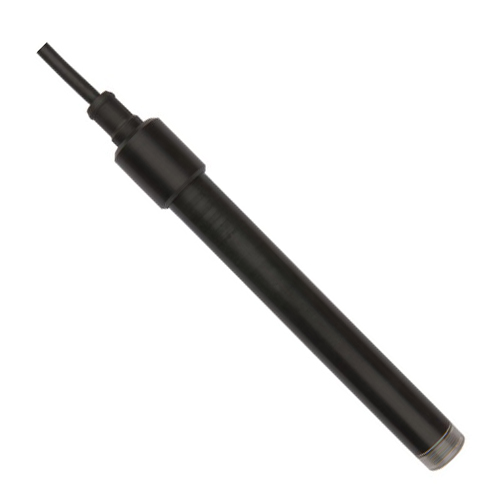

DO ARC sensor

Model NO.

243 100 (OXYFERM FDA ARC)

Range

10 ppb ~ 40 ppm

Accuracy

± 2 % at 25 °C

Required flow

≥ 0.03 m/s

Max. CO2 partial pressure

0.01 bar

Process pressure range

0 to 4 bar

Electrode system

Silver platinum combination

Electrolyte

OXYLYTE, alkaline

Membrane

OPTIFLOW FDA

Temperature Range

- Analog interface: 0 to 100 °C

- Digital interface: 0 to 130 °C

Certificate

CE conformity

Wetted materials

Stainless steel 1.4435, EPDM and silicone with FDA approval

응용

- 바이오, 제약, Food & 음료, 화학

Operating voltage

7~ 30 VDC max. 150 mW

통신

- Analog 1 : 4–20 mA for conductivity, programmable

Analog 2 : 4–20 mA for temperature, programmable

-Digital RS485 Interface : Modbus RTU protocol

DO ARC sensor

Model NO.

243 163 (VISIFERM DO ARC)

Measuring Method

Optical DO(광학 방식)

Range

4 ppb / 0.05 ~ 500 %

Accuracy

± 0.05 %-vol / 21 ± 0.2 %-vol / 50 ± 0.5 %-vol

Required flow

None

Oxygen consumption

None

Membrane

None

Polarization Voltage &time

None

Process pressure range

-1 to 12 bar

Temperature Range

-10 to 130 °C

Certificate

CE conformity

Wetted materials

Stainless steel 1.4435, EPDM and silicone with FDA approval

특징

- 멤브레인 교체 및 교정 없이 간단한 센서 캡 교체

- CO₂, SO₂ 영향 없음

- 저항력 Yes : 에탄올, 메탄올, H2O2, ethylene oxide, beta-gamma irradiation

- 저항력 NO : 염소가스, 유기용매(클로로포름, 톨루엔, 아세톤, 헥산)

응용

- 바이오, 제약, Food & 음료, 수처리장

Operating voltage

7~ 30 VDC max. 150 mW

통신

- Analog 1 : 4–20 mA for conductivity, programmable

Analog 2 : 4–20 mA for temperature, programmable

-Digital RS485 Interface : Modbus RTU protocol

DO ARC sensor

Model NO.

243 110 (OXYGOLD G ARC)

Range

1 ppb ~ 40 ppm

Accuracy

± 2 % at 25 °C

Required flow

≥ 0.1 m/s

Max. CO2 partial pressure

0.01 bar

Process pressure range

0 to 12 bar

Electrode system

Silver platinum combination

Electrolyte

OXYLYTE G, alkaline

Membrane

OPTIFLOW

Temperature Range

- Analog interface: 0 to 100 °C

- Digital interface: 0 to 130 °C

Certificate

CE conformity

응용

- 보일러수, 발전소, 화학, 제약, 반도체

Operating voltage

7~ 30 VDC max. 150 mW

통신

- Analog 1 : 4–20 mA for conductivity, programmable

Analog 2 : 4–20 mA for temperature, programmable

-Digital RS485 Interface : Modbus RTU protocol

DO ARC sensor

Model NO.

243 115 (OXYGOLD B ARC)

Range

8 ppb ~ 40 ppm

Accuracy

± 2 % at 25 °C

Required flow

≥ 0.1 m/s

Max. CO2 partial pressure

12 bar

Process pressure range

0 to 12 bar

Electrode system

Silver platinum combination

Electrolyte

OXYLYTE B, acidic

Temperature Range

- Analog interface: 0 to 100 °C

- Digital interface: 0 to 130 °C

Certificate

CE conformity

특징

- 높은 CO₂ 농도에서 측정

- Steam sterilizable

- Autoclavable

- CIP

응용

- 음용수, 화학, 맥주

Process connection

PG 13.5

Operating voltage

7~ 30 VDC max. 150 mW

통신

- Analog 1 : 4–20 mA for conductivity, programmable

Analog 2 : 4–20 mA for temperature, programmable

-Digital RS485 Interface : Modbus RTU protocol
