Range |
Temp |
Pressure |
Cable |
기타 |
|
1.00 uS/cm ~ 200.0mS /cm |
0 to 90℃ |
7 bar |
5m cable |
4-cell (4전극) /
Titanium (티타늄) |
Feature : 4-cell (4전극)으로 넓은 범위를 하나의 센서도 측정 가능
Specifications: POM Body, 3/4" NPT 나사탭, NTC30K, Ø28x150mm
|

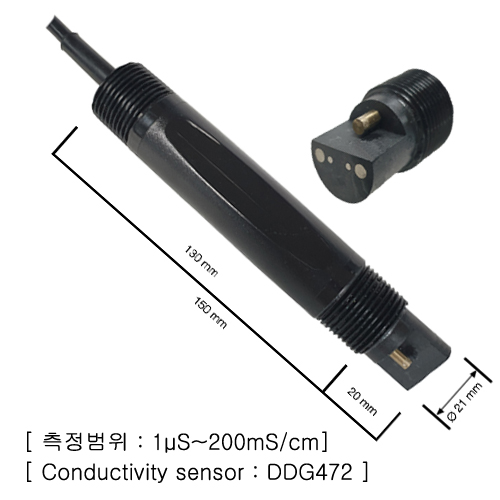

DDG472 |
|
|
|
|
|
|
|
|
Range |
Temp |
Pressure |
Cable |
기타 |
|
1.00 uS/cm ~
200.0 mS/cm |
0 to 80℃ |
7 bar |
5m cable |
4-cell (4전극) /
Titanium (티타늄) |
Feature : 4-cell (4전극)으로 넓은 범위를 하나의 센서도 측정 가능
Specifications: PPS Body, 3/4" NPT 나사탭, NTC30K, Ø28x150mm
|
|

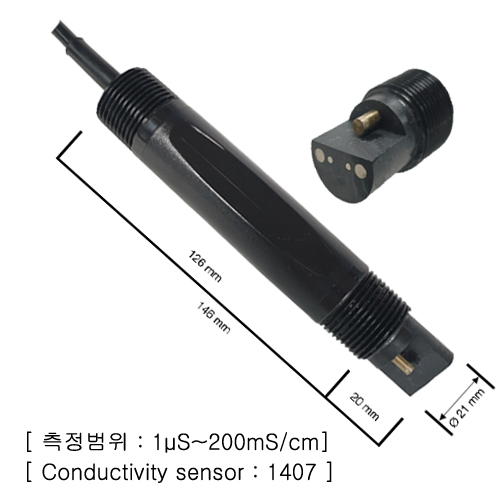

1407 |
|
|
|
|
|
|
|
|
Range |
Temp |
Pressure |
Cable |
기타 |
|
1.00 uS/cm ~ 500.0mS /cm |
0 to 90℃ |
3 bar |
5m cable |
4-cell (4전극) /
Graphite (흑연전극) |
Feature : 500mS/cm 까지 측정가능한 고농도 전도도 센서
Specifications: PPS Body, 3/4" NPT 나사탭, NTC30K, Ø28x150mm
|
|
SDDG472 (고농도용) |
|
|
|
|
|
|
|
|
Range |
Temp |
Pressure |
Cable |
기타 |
|
20.00 uS/cm ~
500.0 mS/cm |
0 to 80℃ |
7 bar |
5m cable |
4-cell (4전극) /
Graphite (흑연전극) |
Feature : 500mS/cm 까지 측정가능한 고농도 전도도 센서
Specifications: PC/Epoxy Body, 1/2" NPT 나사탭, PT1000, Ø13x145mm
|
|

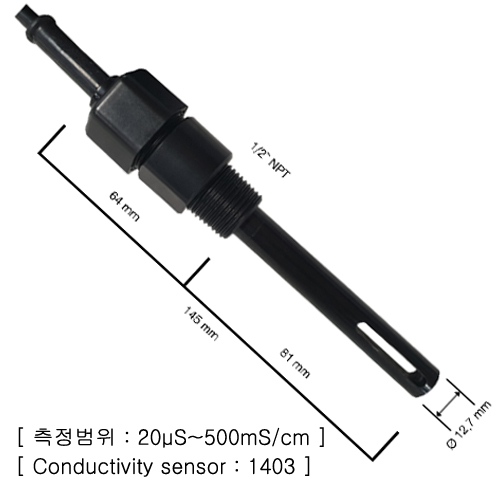

1403 (고농도용) |
|
|
|
|
|
|
|
|
Range 선택 |
Temp |
Pressure |
Cable |
기타 |
|
K=1.0, 0.1, 0.01 |
0 to 100℃ |
150psig |
별도 구매 |
IP65 Detachable Plastic Cable Connector |
 Feature : In-Line installation, Treated 316 Stainless Steel Body
Specifications: Treated 316 Stainless Steel Body
Temperature Range : 0 to 100℃
Maximum Pressure : 150psig at 25℃
1/2and 3/4 Inch in either NPT or BSP Male Fittings
|
|
C621 |
|
|
|
|
|
|
|
|
Range 선택 |
Temp |
Pressure |
Cable |
Length |
|
K=1.0, 0.1, 0.01 |
0 to 120℃ |
100psig |
기본 1m |
120 / 13 (길이조정가능) | Feature : Treated 316 Stainless Steel Body
|
|
C527 |
|
|
|
|
|
|
|
|
Range 선택 |
Temp |
Pressure |
Cable |
Length |
|
0~10, 0~100, 0~1000 mS/cm |
0~60 ℃ |
3 bar at 25℃ |
기본 3m (조정 가능) |
191mm / 86mm | Application : 해수용, 고농도용
Feature : Toroidal(유도식전극), 1 1/2"NMPT, CPVC, 4~20mA, 600 Ohm max.at 24 VDC, 24 VDC
C3254.1 0~10 mS
C3254.2 0~100 mS
C3254.3 0~1000 mS
|
|
C3254 (Toroidal) |
|
|
|
|
|
|
|
