pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
-5 to 80℃ |
4mm |
130mm |
Calomel Refillable |  Application : Blood, Lab Flask, Tall-From, Micro Samples, Test tube, TRIS Buffer
Feature : Glass Body
|
5473901 |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
-5 to 80℃ |
4mm |
235mm |
Calomel Refillable |
Application : Blood, Lab Flask, Tall-From, Micro Samples, Test tube, TRIS Buffer
Feature : Glass Body
|
|
5473902 |
|
|
|
|
|
|
|
| Model NO. | 238 197 (Spintrode) | | pH Range | 0~14 | | Temperature Range | 0~100 ℃ | | Electrolyte | 3M KCL(refillable) | | Body material | HF glass | | Membrane shape | Cylindrical (원통형) | | Diaphragm | Ceramic | | Reference system | EVEREF | | Dimension | Φ3 x 180 mm | | Electrical connection | S7 connector head | | 특징 및 응용 | -NMR튜브 등 소량 샘플측정용 콤비네이션 전극 | | | -긴수명의 EVEREF 시스템 | | | -7mm의 수심만 있으면 측정가능 | | | -시리얼 넘버, 보증서 |
|
|

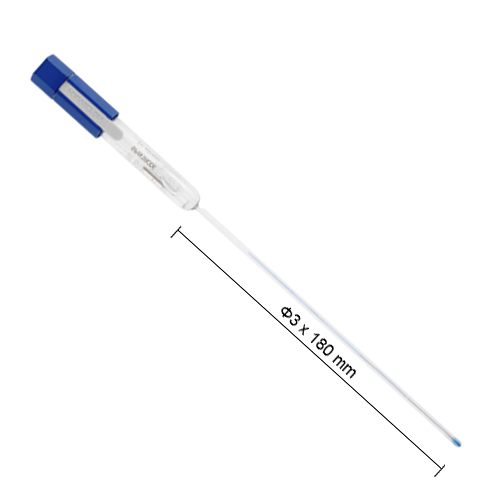

238 197 (Spintrode) |
|
|
|
|
|
|
|
| Model NO. | LabSen241-180 (Ultra Micro) | | pH Range | 0~14 | | Temperature Range | 0~100 ℃ | | Electrolyte | 3M KCl (refill) | | Body material | Lead-free Glass | | Membrane shape | Cylindrical (원통형) | | Junction | Ceramic | | Reference | Long-life | | Dimension | Φ3 x 180 mm | | Electrical connection | BNC / 1m cable | | 특징 및 응용 | -소량시료 (≥50uL) 측정에 적합 | | | -NMR tube, 원심분리 tube 사용 가능 | | | -긴수명의 레퍼런스시스템. |
|
|
LabSen241-180 ((Ultra Micro) |
|
|
|
|
|
|
|
| Model NO. | LabSen241-3 (Micro) | | pH Range | 0~14 | | Temperature Range | 0~100 ℃ | | Electrolyte | 3M KCl (refill) | | Body material | Lead-free Glass | | Membrane shape | Cylindrical (원통형) | | Junction | Ceramic | | Reference | Long-life | | Dimension | Φ3-4 x 70 mm | | Electrical connection | BNC / 1m cable (S7 connector : LabSen242-3) | | 특징 및 응용 | -소량시료 (≥30uL) 측정에 적합 (최소 15uL) | | | -NMR tube, 원심분리 tube 사용 가능
-상단측정부 ø3mm 유리와 ø4mm 서스 로드로 되어
있어 내구성이 좋음 | | | -긴수명의 레퍼런스시스템 |
|
|

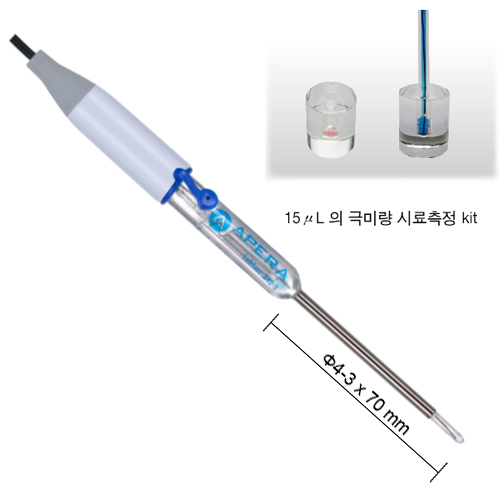

LabSen241-3 (Micro) |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
0 to 100℃ |
8mm |
55mm |
Ag/AgCl Refillable | Application : Test tube
Feature : Glass Body
|
|
5673506 |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
0 to 100℃ |
8mm |
115mm |
Ag/AgCl Refillable | Application : Lab Flask, Tall-From, Test tube
Feature : Glass Body
|
|
5673507 |
|
|
|
|
|
|
|
| Model NO. | 238 100 (Minitrode) | | pH Range | 0~14 | | Temperature Range | 0~100 ℃ | | Electrolyte | 3M KCl, silver free (refillable) | | Body material | HF glass | | Membrane shape | Cylindrical (원통형) | | Diaphragm | Ceramic | | Reference system | EVEREF | | Dimension | Φ3 x 60 mm | | Electrical connection | S7 connector head | | 특징 및 응용 | -바이알 등의 소량시료 측정에 적합 | | | -긴수명의 EVEREF 시스템 | | | -7mm의 수심만 있으면 측정가능 | | | -시리얼 넘버, 보증서 |
|
|
238 100 (Minitrode) |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
0 to 100℃ |
8mm |
250mm |
Ag/AgCl Refillable | Application : Dough, Lab Flask, Tall-From, Test tube
Feature : Glass Body
|
|
5673510 |
|
|
|
|
|
|
|
| Model NO. | 238 140 (Biotrode) | | pH Range | 0~14 | | Temperature Range | 0~100 ℃ | | Electrolyte | Protelyte (refillable) | | Body material | HF glass | | Membrane shape | Spherical | | Diaphragm | Ceramic | | Reference system | EVEREF | | Dimension | Φ3 x 60 mm | | Electrical connection | S7 connector head | | 특징 및 응용 | -소량의 시료 측정에 적합한 콤비네이션 pH 전극
(Microtiter plates) | | | -PROTELYTE 전해질 사용으로 다이아프램의 막힘
현상이 없어 단백질
함유시료에 적합 | | | -긴수명의 EVEREF 시스템 | | | -7mm의 수심만 있으면 측정가능 | | | -시리얼 넘버, 보증서 |
|
|
238 140 (Biotrode) |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
0 to 100℃ |
6mm |
110mm |
Ag/AgCl Refillable | Application : Lab Flask, Tall-From, Micro Samples, Test tube
Feature : Glass Body, Semi Micro
|
|
5573501 |
|
|
|
|
|
|
|
| Model NO. | 238 150 (Slimtrode) | | pH Range | 0~14 | | Temperature Range | 0~100 ℃ | | Electrolyte | 3M KCl (refillable) | | Body material | HF glass | | Membrane shape | Cylindrical (원통형) | | Diaphragm | Ceramic | | Reference system | EVEREF | | Dimension | Φ6 x 100 mm | | Electrical connection | S7 connector head | | 특징 및 응용 | -테스트 튜브용 6mm 직경의 전극 | | | -긴수명의 EVEREF 시스템 | | | -일반적인 시료 및 강산에 적용 가능 | | | -시리얼 넘버, 보증서 |
|
|
238 150 (Slimtrode) |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
-5 to 80℃ |
6mm |
110mm |
Calomel Refillable | Application : Lab Flask, Tall-From, Test tube
Feature : Glass Body, Semi Micro
|
|
5573902 |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
0 to 80℃ |
6mm |
155mm |
Ag/AgCl Sealed | Application : Education, Lab Flask, Tall-From, Test tube
Feature : Epoxy Body
|
|
5533501 |
|
|
|
|
|
|
|
|
pH Range |
Temperature Range |
Diameter |
Length |
Internal Reference Element |
|
0-13 |
0 to 80℃ |
6mm |
155mm |
Calomel Sealed | Application : Education, Lab Flask, Tall-From, Test tube, TRIS Buffer
Feature : Epoxy Body
|
|
5533901 |
|
|
|
|
|
